SPRAY FOAM INSULATION/AIR BARRIER SYSTEMS

Commercial closed-cell spray foam insulation is an enormous benefit for owners, occupants, and the environment.

Spray foam insulation seals the building envelope to stop conditioned indoor air from escaping and prevent unconditioned air from entering a building. Air exchange in and out of a building is a leading cause of escalated energy bills. With a closed cell content over 90%, SPF outperforms other options for structural strength, life expectancy and life-cycle costs.
Wall shear and racking strength can be up to three times stronger when insulating with closed-cell foam, rather than conventionally insulated walls.

BENEFITS OF SPRAY FOAM INSULATION

• Spray polyurethane foam (SPF) insulation helps keep buildings warm in the winter and cool in the summer. Because it is sprayed directly into the gaps, cracks and other surfaces that contribute to heat loss, it both insulates and air seals, offering one of the easiest and most effective ways of weatherizing existing buildings and new construction.
• SPF insulation helps save on energy bills. The US Department of Energy has stated that up to 40% of the energy used to heat and cool a building is due to uncontrolled air leakage.
• SPF resists heat transfer better than many other insulation materials, with aged R-values around 6.5 per inch. R-value is a term used to rate an insulation’s ability to resist conductive heat transfer. The higher the R-value, the more effective the insulation’s ability is to resist conductive heat flow. Fiberglass insulation has an R-value of 2.9 - 3.8 per inch.
• Because SPF insulation minimizes air infiltration, it assists in preventing moisture vapor from entering and escaping the building, which in turn reduces the load on heating and cooling systems.
• Reduce drafts and noise and increase comfort. SPF is an effective air barrier and helps minimize air-borne sound transmission.
• Because SPF insulation seals gaps, it provides a barrier against insects and other pests.
• SPF insulation minimizes air infiltration that can generate condensation and result in mold growth.

insulation air barrier FAQs

Open-cell insulation has an open cell structure where the cells are filled with air. This creates a soft, flexible foam. Open-cell insulation is moisture permeable, and may require a vapor barrier in cold climates. The R-value of open-cell insulation is around 3.6 to 4.5 per inch. Closed-cell insulation has a closed cell structure that creates a rigid, hard foam. Closed-cell insulation is water-resistant and no additional vapor barrier is needed for most applications. The R-value of closed-cell insulation ranges from 5.8 to 6.9 per inch.
Because of its rigid nature and ability to adhere to many materials, closed-cell SPF can provide structural enhancement to framed buildings. The racking strength of certain framed walls can be significantly increased with the addition of 2-3 inches of SPF.

Because it is spray applied, closed-cell foam has many applications and possibilities, including: exterior/interior walls, floors/ceilings, tanks, coolers, piping, cold storage/freezers, foundations.
SPF insulation sprayed 1.5” thick or more will form an air-impermeable air barrier.

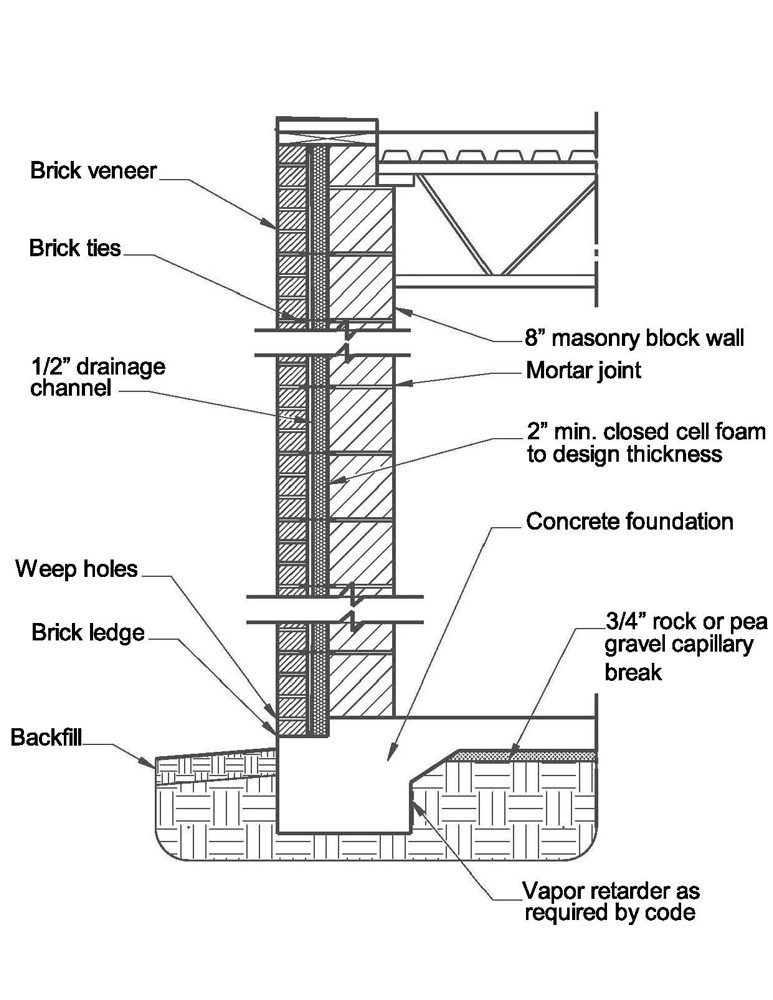

Diagram- Brick Masonry Wall-Space

Insulation - brick & masonry wall detail

click here to enlarge.
Diagram- Roof To Wall Joint

Insulation – roof to wall joint detail

click here to enlarge.

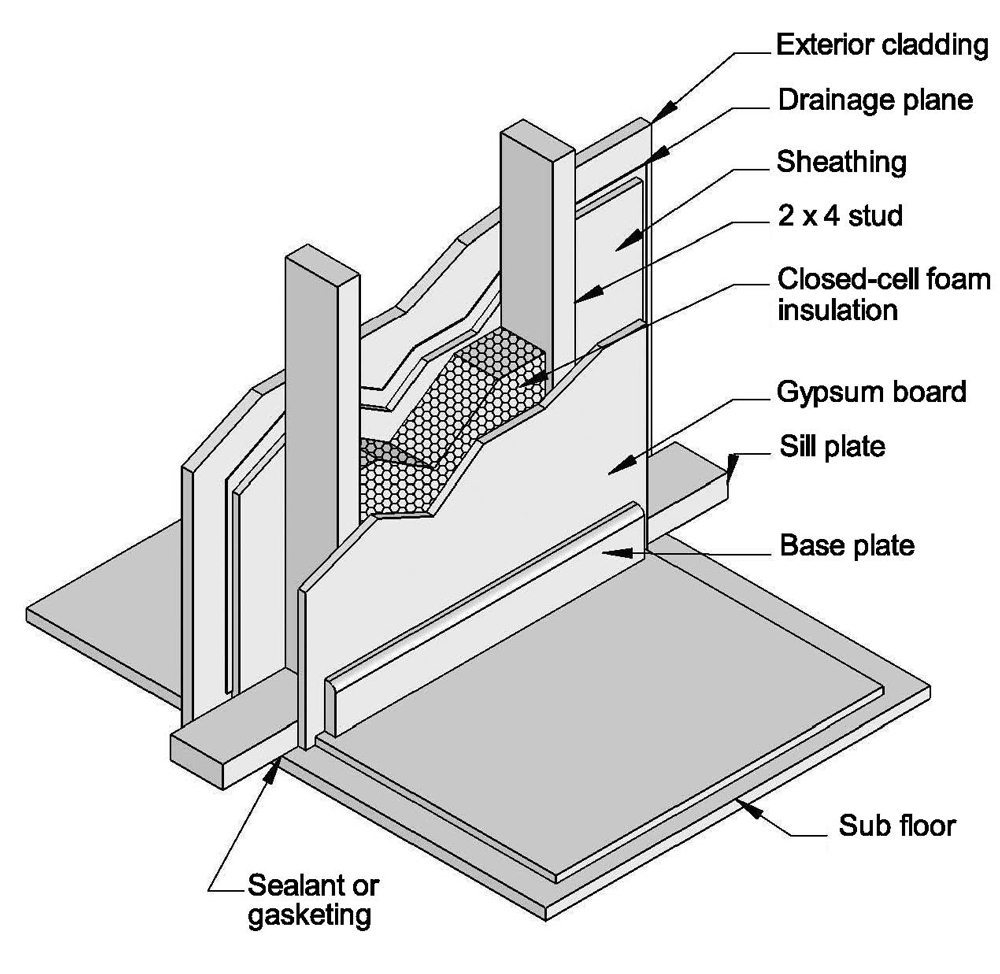

Diagram- Typical Wall Stud

Insulation – typical 2 x 4 wall stud detail

click here to enlarge.

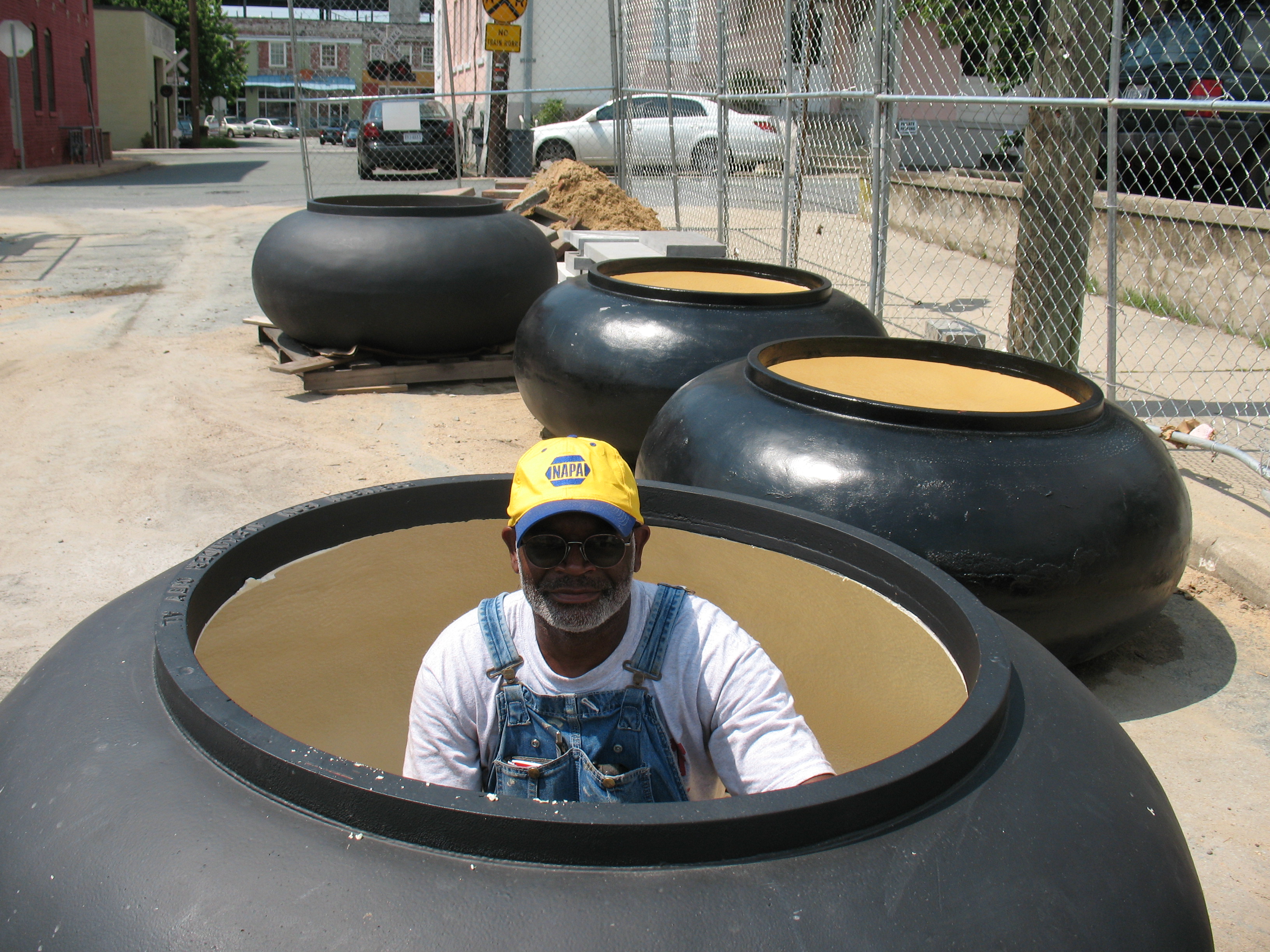

PUFF in a pot

PUFF in a pot – technician trimming excess foam from inside insulated flower pot
